For soil growers, not every decision can wait for sample preparation or extraction.
Conditions in the root zone can shift quickly. Irrigation events, plant uptake, temperature, and substrate variability all influence how nutrients behave in real time. In these situations, growers need a way to observe what is happening directly, without altering the system.
Direct measurement, often referred to as direct soil measurement, provides that capability. By inserting a probe into the soil or substrate, growers can assess pH, EC and moisture in place using the appropriate tools. This helps build a real-time picture of conditions in the root zone, without needing to remove a sample or prepare an extract.
What Direct Measurement Measures
Direct measurement involves inserting a sensor into the soil/substrate to capture physical and chemical properties without removing or modifying the sample.
Depending on the tool, this can include:
-
pH
-
EC (electrical conductivity)
-
Moisture content, often expressed as volumetric water content (VWC%)
-
Temperature
Unlike slurry or pour-through methods, there is no extraction step. The measurement is taken within the soil matrix itself.
This means the readings reflect in-situ conditions, including the influence of:
-
water distribution
-
substrate structure
-
root activity
It also means the data behaves differently from extract-based methods and must be interpreted accordingly.
Bluelab’s soil tools are designed for this type of in-place measurement, allowing growers to monitor moisture, EC and pH directly in the root zone.
-
The Bluelab Pulse Meter measures moisture, EC and temperature directly in soil or substrate (*excludes rockwool), helping growers understand irrigation, dryback and nutrient concentration.
-
The Bluelab Soil pH Pen measures pH and temperature directly in soil.
-

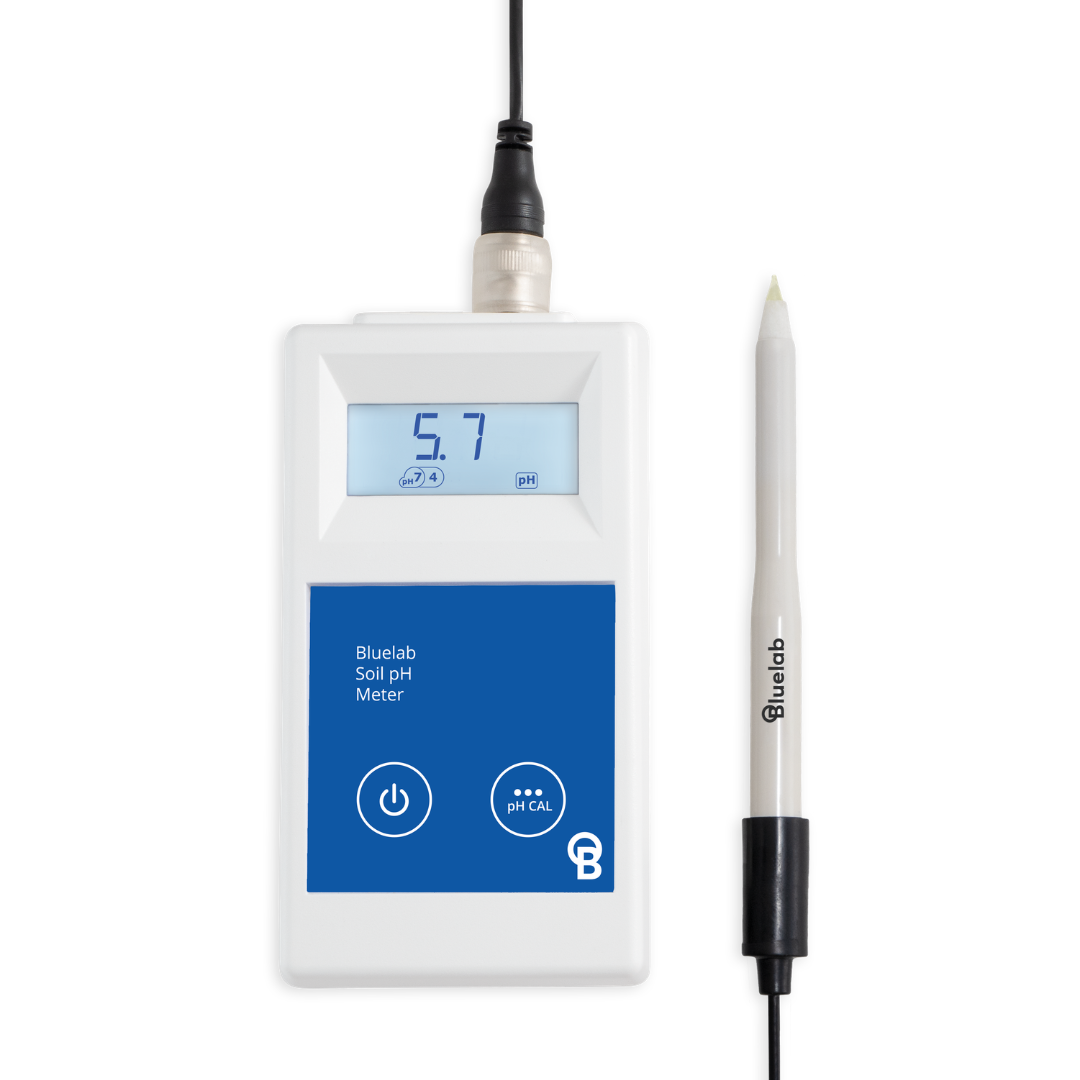

The Bluelab Soil pH Meter is a good option for growers who want a dedicated pH measurement tool across different growing media.
Using these measurements together helps growers build a more complete picture of root zone conditions, rather than relying on a single data point.
How Direct Measurement Differs from Extraction Methods
Each testing method answers a different question.
-
Slurry testing estimates conditions using a diluted extract. Read more: https://eu.bluelab.com/blogs/articles/soil-slurry-testing
-
Pour-through captures solution moving through the root zone. Read more: https://eu.bluelab.com/blogs/articles/pour-through-testing-method
-
Direct measurement captures root zone conditions in the soil or substrate
Because direct measurement does not isolate the soil solution, it reflects the combined effect of water content, substrate composition, and dissolved ions.
This is especially important for EC.
Bulk EC vs Solution EC
Direct measurement often reports bulk EC, which includes:
-
ions in solution
-
interaction with the substrate matrix
-
influence of moisture content
This differs from extract-based EC, which measures only the liquid phase.
As a result:
-
bulk EC values are not directly comparable to slurry or lab EC
-
readings are best used for trend monitoring rather than absolute comparison
Why Growers Use Direct Measurement
Direct measurement is widely used because it provides speed and coverage.
Key advantages
-
Immediate readings with no preparation
-
Ability to measure multiple parameters at once
-
Non-destructive and repeatable
-
Ideal for scanning large areas quickly
-
Enables high-frequency monitoring
Limitations to understand
-
Requires adequate moisture for reliable readings
-
Influenced by substrate type and density
-
Greater variability compared to controlled extraction methods
-
Requires method-specific interpretation
The strength of direct measurement is not precision in a single reading, but insight across many readings.
Taking Reliable Direct Measurements
Direct measurement works best when readings are taken consistently.
For more reliable results:
-
Measure in the active root zone, not just at the surface
-
Insert the probe to a similar depth each time
-
Measure when the soil or substrate has adequate moisture
-
Allow the reading to stabilise before recording it
-
Take multiple readings across the crop to understand variability
Avoid measuring in extremely dry soil or substrate, as pH and EC readings can become less reliable. Tip: If the soil or substrate is very dry, lightly wet the area and allow the moisture to distribute before taking a reading. This can help improve probe contact and reading stability.
Always follow the instructions for the specific meter you are using.
Interpreting pH, EC and Moisture Together
The real value of direct measurement comes from looking at parameters together rather than in isolation.
pH
pH helps growers understand whether nutrients are likely to be available to the plant. In soil and substrate, pH can shift with irrigation, fertiliser use, and biological activity.
Direct pH measurement gives growers a fast way to check conditions in the root zone and identify changes before they become bigger issues. For the most useful results, measure in adequately moist soil and compare readings taken in similar conditions over time.
For many soil and substrate crops, a general pH range of 5.5 to 6.5 is commonly used, although ideal targets vary by crop.
Conductivity (EC)
EC helps indicate the concentration of soluble salts in the root zone. In direct measurement, EC is strongly influenced by moisture content, substrate type and probe contact, so it should always be interpreted alongside water availability.
Unlike extract-based methods, direct EC does not simply reflect the concentration of salts in a liquid sample. As soil or substrate dries, there may be less continuous water around the probe for electrical conductivity, which can make readings lower or less stable even when salts are still present.
Because of this, direct EC measurements are most useful for tracking trends under similar moisture conditions, rather than comparing one isolated reading to a universal target.
EC targets vary widely by crop, growth stage, substrate and measurement method. For many substrate-grown crops, 1.5 to 3.5 mS/cm can be used as a broad reference range, but readings should always be interpreted in context.
Moisture
Moisture plays a central role in how nutrients behave in soil. Water acts as the medium through which nutrients move, and changes in moisture directly affect nutrient availability, salt concentration, and measurement reliability.
When moisture levels shift, so do readings:
-
Nutrient mobility depends on water
Low moisture slows the movement of nutrients toward roots, limiting uptake.
-
EC is influenced by moisture levels
As the soil or substrate dries readings will continue to drop and may become less stable, even though there are nutrient salts still present.
-
pH readings depend on adequate moisture
Very dry conditions can make pH readings less stable or consistent.
Because of this, moisture provides essential context for interpreting pH and EC.
When viewed together, these readings can help growers investigate changes in the root zone, such as:
-
whether EC changes are related to moisture conditions, feeding, plant uptake or sensor contact
-
whether low or unstable readings may be linked to very dry substrate
-
whether pH is staying consistent across similar moisture conditions
This type of interpretation is where direct measurement becomes most valuable.
Consistent testing is one of the simplest ways to catch root zone issues before they turn into crop loss. Regular checks can help growers identify risks such as nutrient lockout, salt build-up, nutrient deficiencies, overfeeding, underfeeding and irrigation stress before plants show severe symptoms.
Find the Right Tool for Direct Root Zone Measurement
Understanding what is happening in the root zone comes down to measuring the right things at the right time.
Explore Bluelab’s soil tools for direct root zone measurement: https://eu.bluelab.com/collections/grow-in-soil-or-substrate
